OpenShift Ambient Mesh Setup

• Pre-requisites
  • Verify cluster auth status
  • Upgrade cluster
• Install service mesh operator
• Deploy ambient istio
  • Deploy istio control plane
  • Deploy istio container network interface
  • Deploy istio ztunnel proxies
• Deploying a sample workload
• Observing the mesh
  • Installing the kiali operator
  • Enable cluster user workload monitoring
  • Configure openshift monitoring with service mesh
  • Assign kiali permissions
  • Deploy kiali

This is a short demonstration of Istio Ambient Mesh on OpenShift 4.19 via the OpenShift Service Mesh operator.

You can install Istio ambient mode on OpenShift Container Platform 4.19 or later and Red Hat OpenShift Service Mesh 3.1.0 or later with the required Gateway API custom resource definitions (CRDs).

This is currently a Technology Preview feature of OpenShift.

Pre-requisites

Before we begin, let's ensure we are logged into our cluster in the terminal and the cluster meets our version requirements.

Verify cluster auth status

oc version && oc whoami

Client Version: 4.19.7
Kustomize Version: v5.5.0
Server Version: 4.19.9
Kubernetes Version: v1.32.7
admin

Upgrade cluster

The Red Hat demo system environment available was not yet running OpenShift 4.19 so I needed to upgrade it before performing any demo preparation steps.

The first step is to acknowledge the k8s api deprecations between 4.18 and 4.19.

oc -n openshift-config patch cm admin-acks --patch '{"data":{"ack-4.18-kube-1.32-api-removals-in-4.19":"true"}}' --type=merge

Once admin acks are in place we can set the upgrade channel to fast-.419.

oc adm upgrade channel fast-4.19

Now we're ready to trigger the upgrade.

oc adm upgrade --to 4.19.9

Before proceeding with any further steps let's wait for the cluster upgrade to complete.

oc adm wait-for-stable-cluster

Install service mesh operator

Our first step to prepare the demonstration is to install the service mesh operator.

cat << EOF | oc apply --filename -
apiVersion: operators.coreos.com/v1alpha1
kind: Subscription
metadata:
  name: servicemeshoperator3
  namespace: openshift-operators
spec:
  channel: stable
  installPlanApproval: Automatic
  name: servicemeshoperator3
  source: redhat-operators
  sourceNamespace: openshift-marketplace
EOF

subscription.operators.coreos.com/servicemeshoperator3 created

Once the operator has completed installation we should see new Custom Resources available for use:

oc get crd | grep sail

istiocnis.sailoperator.io	2025-08-21T00:30:28Z
istiorevisions.sailoperator.io	2025-08-21T00:30:28Z
istiorevisiontags.sailoperator.io	2025-08-21T00:30:29Z
istios.sailoperator.io	2025-08-21T00:30:28Z
ztunnels.sailoperator.io	2025-08-21T00:30:28Z

Deploy ambient istio

Deploy istio control plane

With the operator installed lets install the istio control plane with the ambient profile.

#+NAME Install istio control plane

cat << EOF | oc apply --filename -
apiVersion: v1
kind: Namespace
metadata:
  name: istio-system

---
apiVersion: sailoperator.io/v1
kind: Istio
metadata:
  name: default
spec:
  namespace: istio-system
  profile: ambient
  values:
    pilot:
      trustedZtunnelNamespace: ztunnel
    meshConfig:
      discoverySelectors:
      - matchLabels:
          istio-discovery: enabled
EOF

namespace/istio-system created
istio.sailoperator.io/default created

Once the custom resources are created we can wait for the istio control plane deployment to become ready.

oc wait --for=condition=Ready istios/default --timeout=3m

istio.sailoperator.io/default condition met

Deploy istio container network interface

Once the control plane is in place we'll create the corresponding networking components, again with the profile ambient.

cat << EOF | oc apply --filename -
apiVersion: v1
kind: Namespace
metadata:
  name: istio-cni

---
apiVersion: sailoperator.io/v1
kind: IstioCNI
metadata:
  name: default
spec:
  namespace: istio-cni
  profile: ambient
EOF

namespace/istio-cni created
istiocni.sailoperator.io/default created

As we did earlier, after creating the custom resources we can wait for the components to become ready.

oc wait --for=condition=Ready istios/default --timeout=3m

istio.sailoperator.io/default condition met

Deploy istio ztunnel proxies

Lastly, we need to deploy the istio ztunnel proxies which are a per-node proxy that manages secure, transparent tcp connections for all workloads on the node. Once again these will be deployed with the ambient profile.

cat << EOF | oc apply --filename -
apiVersion: v1
kind: Namespace
metadata:
  name: ztunnel

---
apiVersion: sailoperator.io/v1alpha1
kind: ZTunnel
metadata:
  name: default
spec:
  namespace: istio-system
  profile: ambient
EOF

namespace/ztunnel created
ztunnel.sailoperator.io/default created

And again let's wait to verify that these have deployed successfully before proceeding.

oc wait --for=condition=Ready ztunnel/default --timeout=3m

ztunnel.sailoperator.io/default condition met

Deploying a sample workload

Once our istio ambient mode mesh is in place, let's deploy a workload. Notice how we include the istio.io/dataplane-mode: ambient label on our namespace to enrol all workloads in the mesh in our namespace.

cat << EOF | oc apply --filename -
apiVersion: v1
kind: Namespace
metadata:
  name: workload
  labels:
    istio.io/dataplane-mode: ambient
EOF

oc apply --namespace workload --filename workload.yaml

namespace/workload created
deployment.apps/quake created
service/quake created
configmap/quake3-server-config created

Observing the mesh

With istio deployed in ambient mode and a workload enabled, let's validate this by installing Kiali to enable mesh observability.

Installing the kiali operator

To install the operator all we need to do is create a Subscription resource.

cat << EOF | oc apply --filename -
apiVersion: operators.coreos.com/v1alpha1
kind: Subscription
metadata:
  name: kiali-ossm
  namespace: openshift-operators
spec:
  channel: stable
  installPlanApproval: Automatic
  name: kiali-ossm
  source: redhat-operators
  sourceNamespace: openshift-marketplace
EOF

subscription.operators.coreos.com/kiali-ossm created

Enable cluster user workload monitoring

While the operator is installing let's enable user workload monitoring on our cluster, we'll need this to scrape metrics from our deployed service mesh control plane and ztunnel proxies.

cat << EOF | oc apply --filename -
apiVersion: v1
kind: ConfigMap
metadata:
  name: cluster-monitoring-config
  namespace: openshift-monitoring
data:
  config.yaml: |
    enableUserWorkload: true
EOF

configmap/cluster-monitoring-config created

Configure openshift monitoring with service mesh

Let's also ensure that cluster monitoring knows to scrape mesh metrics by creating a ServiceMonitor.

cat << EOF | oc apply --filename -
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: istiod-monitor
  namespace: istio-system
spec:
  targetLabels:
  - app
  selector:
    matchLabels:
      istio: pilot
  endpoints:
  - port: http-monitoring
    interval: 30s
EOF

servicemonitor.monitoring.coreos.com/istiod-monitor created

Assign kiali permissions

With the mesh metrics being scraped by the cluster prometheus instance we are almost ready to deploy Kiali to visualize them. Before we do, let's ensure kiali will have permissions to retrieve cluster monitoring information.

cat << EOF | oc apply --filename -
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kiali-monitoring-rbac
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-monitoring-view
subjects:
- kind: ServiceAccount
  name: kiali-service-account
  namespace: istio-system
EOF

clusterrolebinding.rbac.authorization.k8s.io/kiali-monitoring-rbac created

Deploy kiali

Finally - Let's enable the OpenShift Web Console integration for Kiali so we can view the service mesh details directly in the OpenShift Web Console!

cat << EOF | oc apply --filename -
apiVersion: kiali.io/v1alpha1
kind: OSSMConsole
metadata:
  name: ossmconsole
EOF

ossmconsole.kiali.io/ossmconsole created

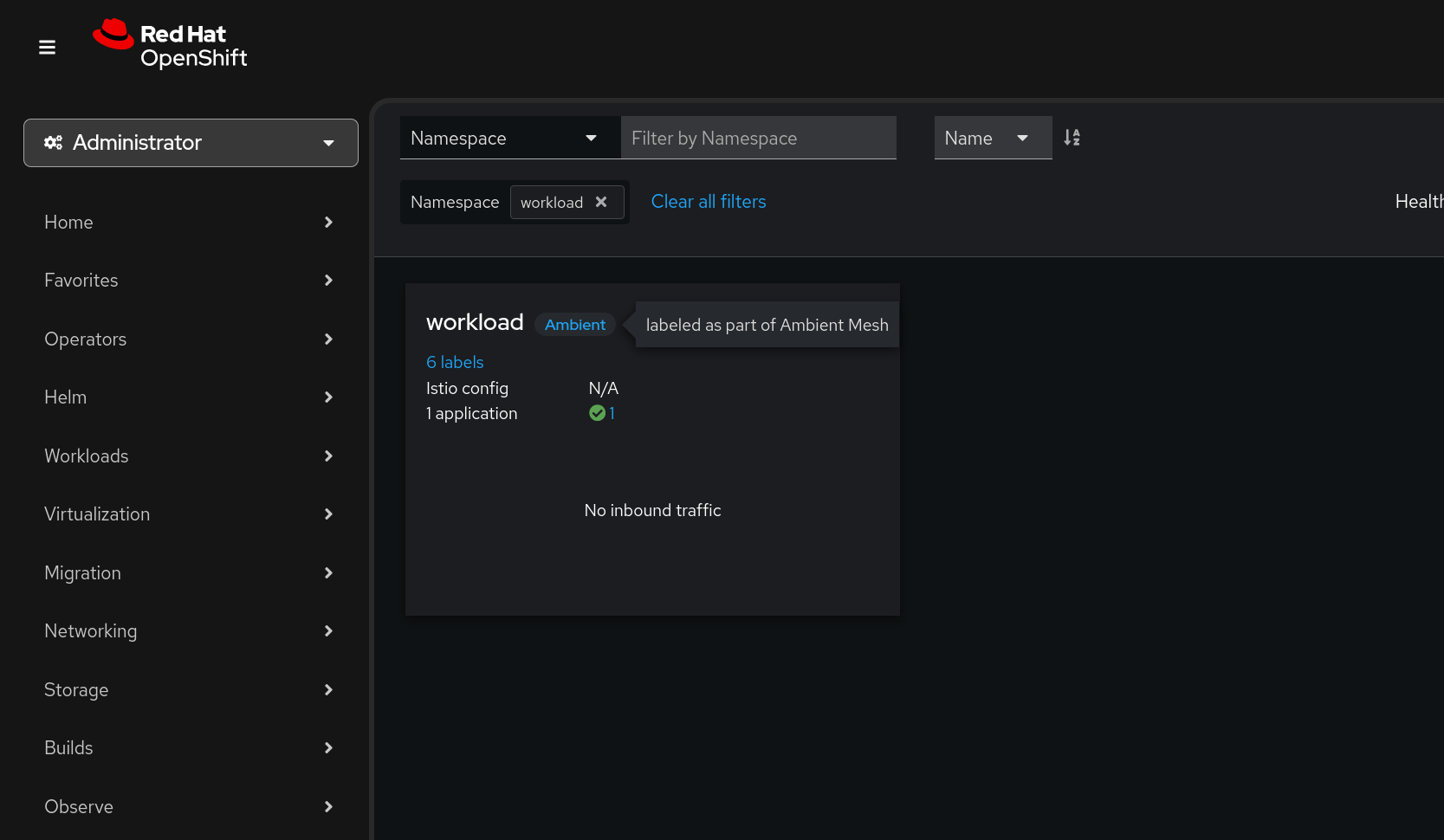

Once the console plugin is deployed we should see our workload tagged as Ambient:
